DEE / Equipment rental
Digital

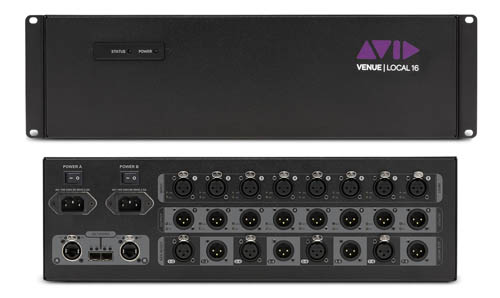

| Avid Venue * Local 16 | |
| Stock | 1 pcs. |
| Serial # | SN EAELH90700100F |
| Dimensions | H--x D--x L--cm |
| Weight | 7.4kg |
| Technical details | 3 Unit |
| Description | Local 16 I/O Provides 8 analog inputs, 8 analog outputs, 8 AES digital inputs, and 8 AES digital outputs (96kHz) |

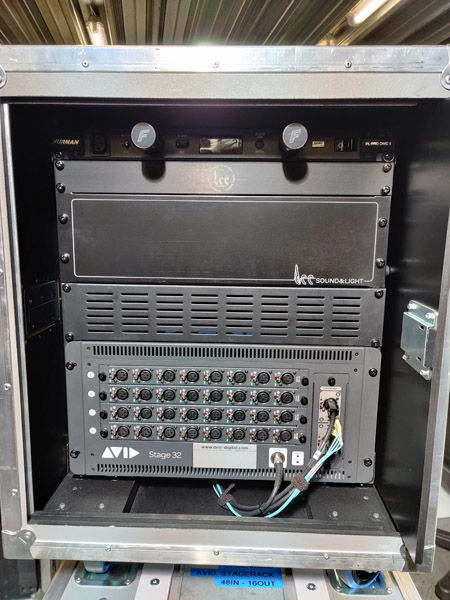

| Avid Venue * Stage 32 | |
| Stock | 2 pcs. |
| Serial # | SN ENELJ00500020K |
| Dimensions | H--x D--x L--cm |
| Weight | 86kg included case |
| Technical details | DEE-3582 stock number |
| Remarks | Loaded 32 SRI-192 |
| Description | Stage 32 I-O Maximum 32 input or 32 output channels (SRI-192 SRO-192 DSI-192 DSO-192) 96kHz |

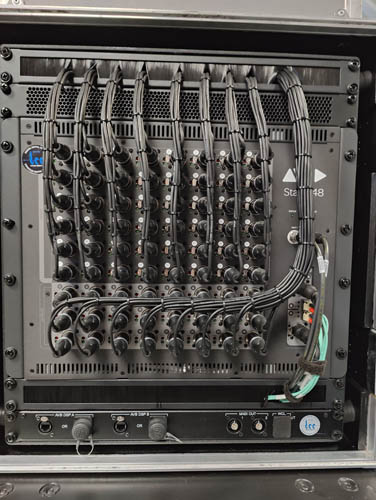

| Avid Venue * Stage 48 | |
| Stock | 1 pcs. |
| Serial # | SN ENEQ31100008J |
| Dimensions | H--x D--x L--cm |
| Weight | kg included case |
| Remarks | Loaded 48/24 |
| Description | Stage 48 I-O Maximum 48 mic-preamps and 24 analog outputs (Fixed rack) 2 Ethernet AVB ports , 2 fiber AVB ports ,MADI coaxial output split directly from the preamps with 48 channels at 96K, redundant 48 channels at 48K |

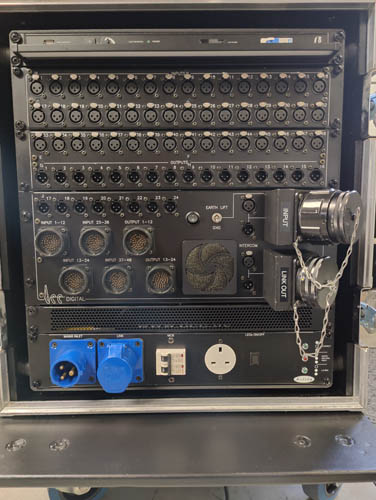

| Avid Venue * Stage 48-48LK 150 | |
| Stock | 1 pcs. |
| Serial # | SN |
| Remarks | Avid ( LK150 in LK150 link out-Socapex 337) |
| Description | Avid Patch Link 150 in-out + 4x Socapex 337 1-12 13-24 25-36 37-48 (In put) 2x Socapex 337 1-12 13-24 (Output) also XLR in and out |

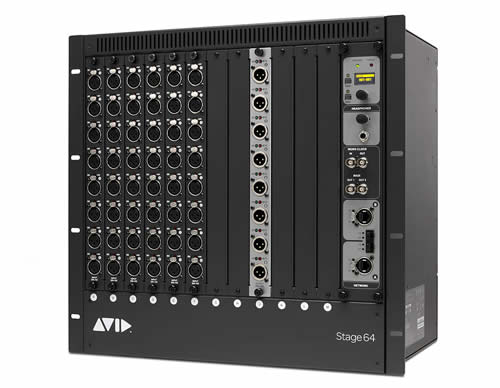

| Avid Venue * Stage 64 | |
| Stock | 3 pcs. |
| Serial # | SN BLDYM54500037A |
| Dimensions | H82x D60x L80cm |
| Weight | 110kg included case |
| Technical details | 96kHz |
| Remarks | Loaded 64/32/DSO |
| Description | Stage 64 I-O Maximum 64 input,and 32 output channels (SRI-192 SRO-192 DSI-192 DSO-192) |

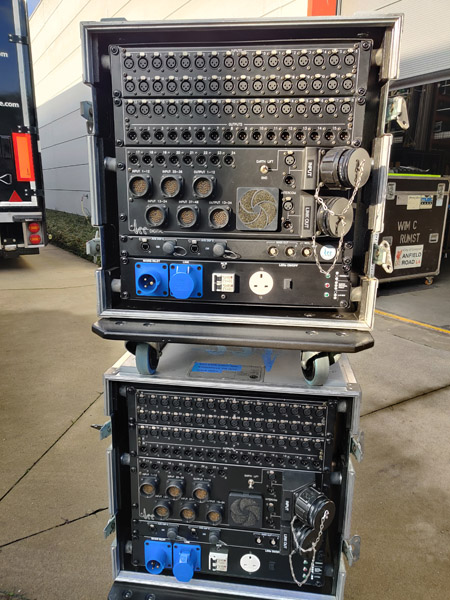

| Avid Venue * Stage 64-LK 150 | |
| Stock | 1 pcs. |
| Serial # | SN |
| Technical details | also XLR in and out |
| Remarks | Avid ( LK150 in LK150 link out-Socapex 337) |
| Description | Avid Patch Link 150 in-out + 4x Socapex 337 1-12 13-24 25-36 37-48 (In put) 2x Socapex 337 1-12 13-24 (Output) also XLR in and out |
| Avid Venue * Stage rack-LK150 | |
| Stock | 1 pcs. |
| Serial # | SN |
| Technical details | Also XLR in and Output |
| Remarks | LK150 + Socapex 337 |
| Description | Avid-SSL Patch (Front) 2x 150 in-out (Link) 2x Socapex 337 73-84 85-96 + (Back)6x Socapex 337 (A+B)1-24 (C+D)25-48 (E+F) 49-72 (In put) (Output- 2x Socapex 337 1-12 13-24 ) |
